Prism
Everything You Need to Know About Prism Pergola
Our Prism Pergola features adjustable louvred blades that put you in full control of your outdoor environment. Open them to welcome natural airflow and sunlight, or close them instantly for shade and rain protection, all with the touch of a button. Crafted with a sleek, modern aesthetic and available in a range of finishes, it transforms any terrace, garden, or commercial space into a comfortable, year-round outdoor living area.
Here are some key features of Bioclimatic Pergola Systems:
01
Louver Design
The louvres on the pergola ceiling open and close on demand, giving you precise control over sunlight, wind, rain, and temperature at any time of day.
02
Air Flow
In the open position, the louvres allow natural air circulation and create a refreshing cooling effect. When closed, they shield the space and regulate airflow completely.
03
Rain & Sun Protection
Close the louvres during rain for full wet-weather protection, or keep them open on sunny days to maximize natural light intake, all with a single adjustment.
04
Aesthetic Design
Clean lines and a modern silhouette make Bioclimatic Pergolas a visual upgrade to any outdoor space. Available in a range of colors and finishes to match your style.
05
Remote & Auto Control
Control your louvres effortlessly via remote or let automatic sensors do the work, responding to weather changes in real time for a hands-free outdoor experience.
06
Maximum Dimensions
Covers up to 13′ 1″ × 22′ 11″, ideal for large patios, terraces, and commercial outdoor spaces. Additional units can be attached for expanded coverage.
Optional Products
Choose from a variety of smart control possibilities
LED Lighting
Infrared Heating
Transmitter & Central Control
Smartphone Control
Temperature Sensor
Snow, Rain & Wind Sensors
See It in Motion
Watch how our pergolas transform any outdoor space, built for beauty, engineered for life.
Bioclimatic System
LAMELLA Movement
The lamellas rotate freely between 0° and 110°, allowing maximum air usage and full control over your outdoor environment at any time of day.
Free rotation of the lamella between 0° and 110° provides maximum airflow and lets you adapt the pergola to any weather condition, sun, rain, or snow.
0° - Fully Closed
Complete Weather Protection
With the roof fully closed, the pergola provides protection from all weather conditions, rain, wind, and sun.
5° - Slight Tilt
Ventilation in Any Weather
Allows the area to breathe even during rain or snowfall, maintaining airflow without compromising protection.
45° - Half Open
Controlled Natural Light
Sunlight is welcomed in while still keeping lighting levels comfortable and controlled throughout the space.
110° - Fully Open
Full Sunlight & Open Sky
The lamellas open completely, permitting full use of sunlight and creating a fully open-air experience beneath the pergola.
Pergola Typology
Choose the framework that fits your space.
4 Legs
1 System | 4 Legs
01
Standalone Elegance: Clean lines and structural balance for a seamless backyard focal point.
6 Legs
2 Systems | 6 Legs
02
Expanded Comfort: Double the coverage with a sturdy six-post integrated design.
12 Legs
6 Systems | 12 Legs
03
The Ultimate Venue: Maximum sheltered area with a robust, twelve-post reinforced framework.
Mounting Options
Every structure. Every setting. Every vision.
Wall Mounted
Anchors directly to your home’s façade, ideal for patios and terraces where space efficiency matters most.
Free Standing
A fully independent structure placed anywhere on your property, no walls, no limits, total design freedom
Roof Mounted
Engineered to mount on existing rooftop surfaces, transforming unused space into a premium outdoor retreat.

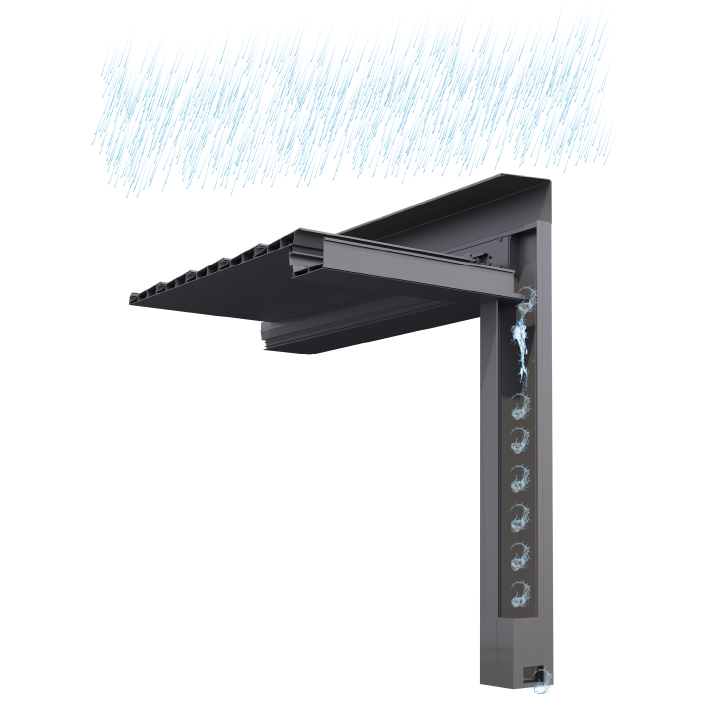

Integrated Water Drainage System
Our bioclimatic pergola is engineered with an integrated drainage system designed to keep your outdoor space dry and comfortable. When it rains, the adjustable roof slats (lamellae) efficiently collect the water and channel it toward the side gutters built into the frame.
From there, the water is discreetly directed through the hollow support posts and discharged through notches at the base. This seamless design ensures that rainwater is managed effectively without compromising the sleek aesthetic of your Pergola.
Intelligent Protection
Built to Sense.
Designed to Respond.
Every Vertex pergola can be equipped with three smart safety sensors that monitor your environment in real time, automatically protecting your structure before conditions change.
Active Monitoring
Sensor 01
Sun Sensor
Detects UV intensity and sunlight direction in real time, automatically adjusting your louvres to maintain the perfect shade balance throughout the day.
- Auto-adjusts louvre angle
- Prevents overheating
- UV exposure control
Active Monitoring
Sensor 02
Rain Sensor
The moment rainfall is detected, the pergola roof closes automatically, keeping your outdoor space dry and your furniture protected without any manual action.
- Instant auto-close
- Protects furniture & flooring
- Re-opens when dry
Active Monitoring
Sensor 03
Wind Sensor
Continuously measures wind speed and direction. When gusts exceed safe thresholds, the system automatically secures the structure to prevent any structural strain.
- Threshold-based auto-lock
- Prevents structural damage
- Real-time speed tracking
Maximum measurement of the system
Front opening size and number of panels
| Panels | Feet | Meters |
|---|---|---|
| 5 Panel | 5' 1" | 1.550 m |
| 6 Panel | 5' 10" | 1.780 m |
| 7 Panel | 6' 7" | 2.016 m |
| 8 Panel | 7' 5" | 2.252 m |
| 9 Panel | 8' 2" | 2.488 m |
| 10 Panel | 8' 11" | 2.725 m |
| 11 Panel | 9' 8" | 2.960 m |
| 12 Panel | 10' 6" | 3.197 m |
| 13 Panel | 11' 3" | 3.433 m |
| 14 Panel | 12' 0" | 3.670 m |
| 15 Panel | 12' 10" | 3.905 m |
| 16 Panel | 13' 7" | 4.142 m |
| Panels | Feet | Meters |
|---|---|---|
| 17 Panel | 14' 4" | 4.378 m |
| 18 Panel | 15' 2" | 4.614 m |
| 19 Panel | 15' 11" | 4.850 m |
| 20 Panel | 16' 8" | 5.086 m |
| 21 Panel | 17' 6" | 5.322 m |
| 22 Panel | 18' 3" | 5.558 m |
| 23 Panel | 19' 0" | 5.795 m |
| 24 Panel | 19' 9" | 6.030 m |
| 25 Panel | 20' 7" | 6.267 m |
| 26 Panel | 21' 4" | 6.503 m |
| 27 Panel | 22' 1" | 6.740 m |
| 28 Panel | 22' 10" | 6.975 m |
Aluminium Collection
Crafted in Tones
Every Vertex aluminium finish is carefully selected for both visual refinement and long-term performance. Our palette is designed to complement natural surroundings, from warm earthy neutrals to cool architectural tones.
UV & Weather Resistant
Fade-proof powder coating ensures colours stay true through years of sun, rain and salt air.
Premium Acrylic Weave
High-grade extrusion with a refined texture, rust-proof, dent-resistant, low maintenance.
6 Curated Tones
A considered palette designed to work harmoniously with any architectural style or landscape.
Pergola Accessories
Precision-crafted designed for every Vertex system.
01
RTS SOMFY MULTIPLE CONTROLLER
02
Control your pergola with your smart phone
03
Somfy Motor ALTUS 60 RTS
Industry-Leading Powered Pergolas
We enhance your outdoor experience with various pergola
solutions and increase the appeal and value of your living spaces.
5-Year Guarantee
Every Vertex pergola is backed by a full 5-year warranty, giving you complete confidence in your investment from day one.
All-Weather Strength
Engineered with high-strength aluminium, our structures perform flawlessly through rain, wind, heat, and everything in between.
Stainless Quality
From panels to pins, every component is crafted from premium stainless inox materials, rust-free and built to endure for decades.
Side Attachments
From Breezy Privacy to Panoramic Views, we got you covered.
Get a Free Quote Today!
Ready to transform your outdoor space? Share a few details with us and our team will get back to you with a tailored quote, no commitment, no pressure, just expert advice and a solution built around you.
